Light weight material with a cardboard surface and a polystyrene core. Also known as foam core. Commonly used for model making, architectural models, crafts and for presenting photos and graphics.

Available thicknesses and colors

  • 10mm - White
  • 5mm - White
  • 5mm - Black
  • 3mm - White
  • 1.5mm - White

Cut width

~ 0.2-0.75mm

Sheet Size

  • 3mm: 980mm * 680mm
  • <3mm: 680mm * 480mm

How does it look once laser cut?

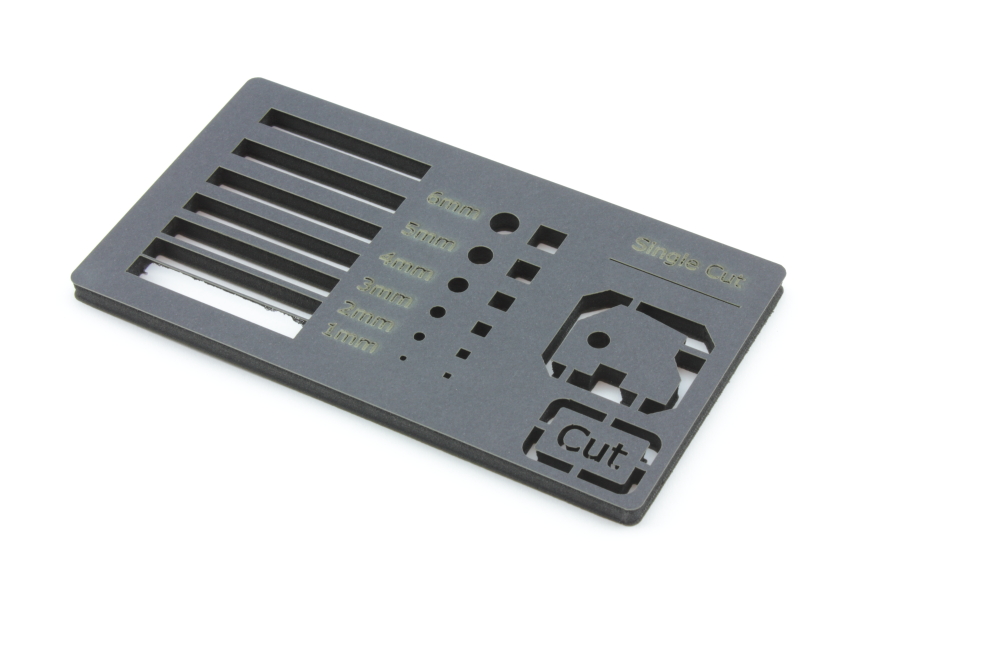

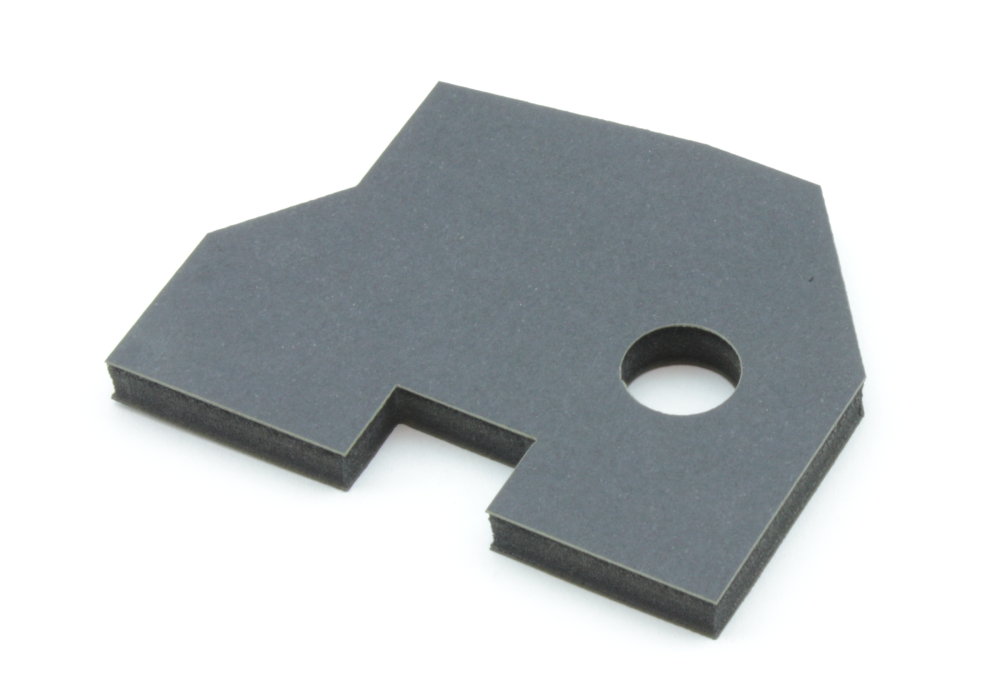

5mm Black Foam board

Foam board 5mm - Cut

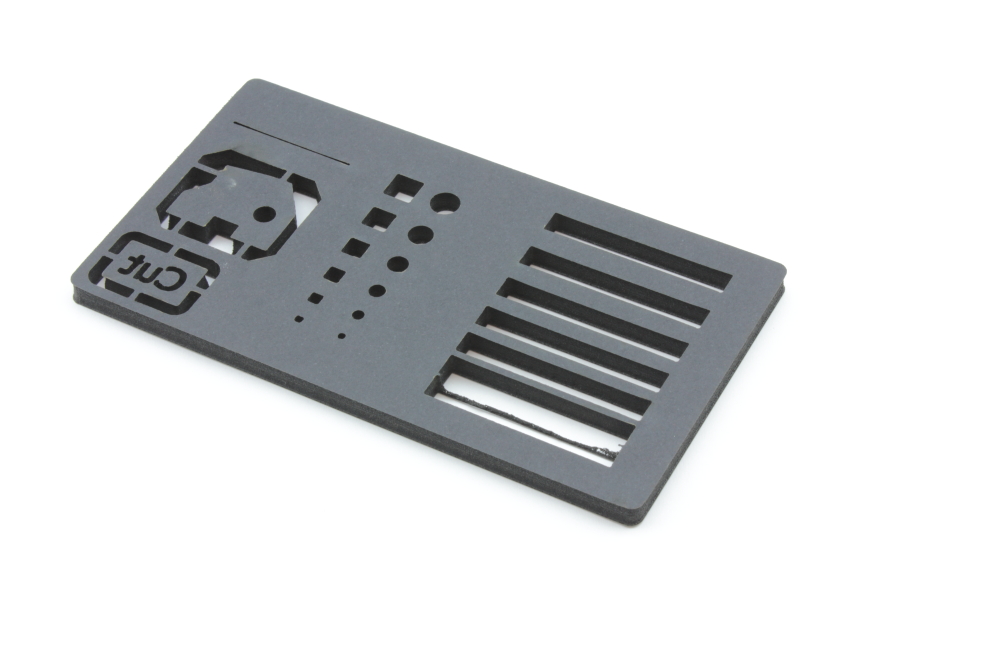

Below: Burn marks on the backside of the parts.

Foam board 5mm - Backside

Foam board 5mm - Front

Foam board 5mm - Black

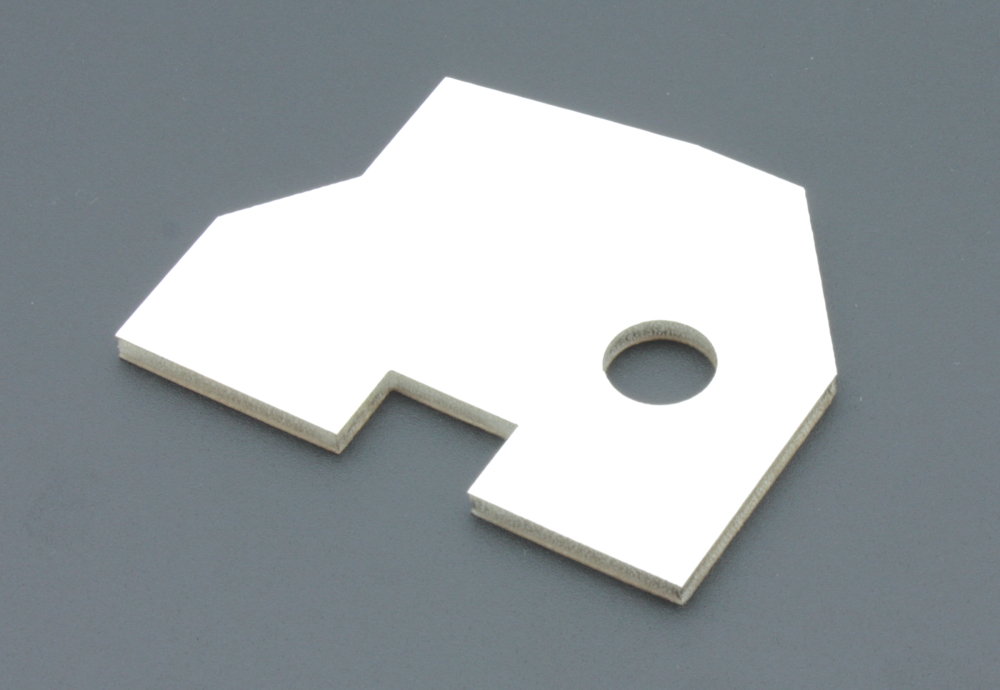

3mm White Foam board

Foam board 3mm - Cut

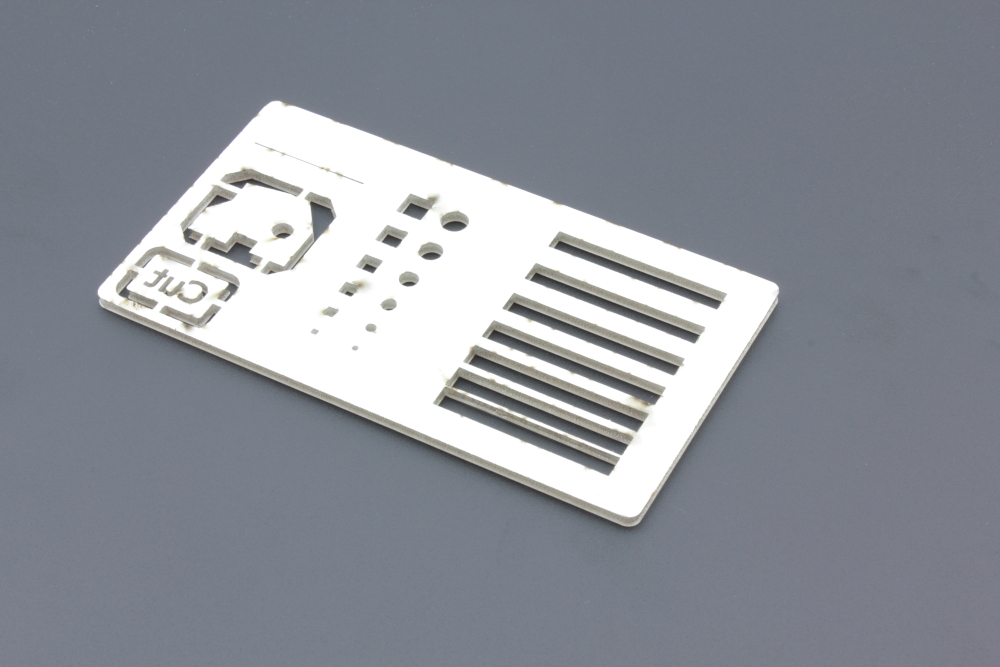

Below: Burn marks on the backside of the parts.

Foam board 3mm - Cut - Backside

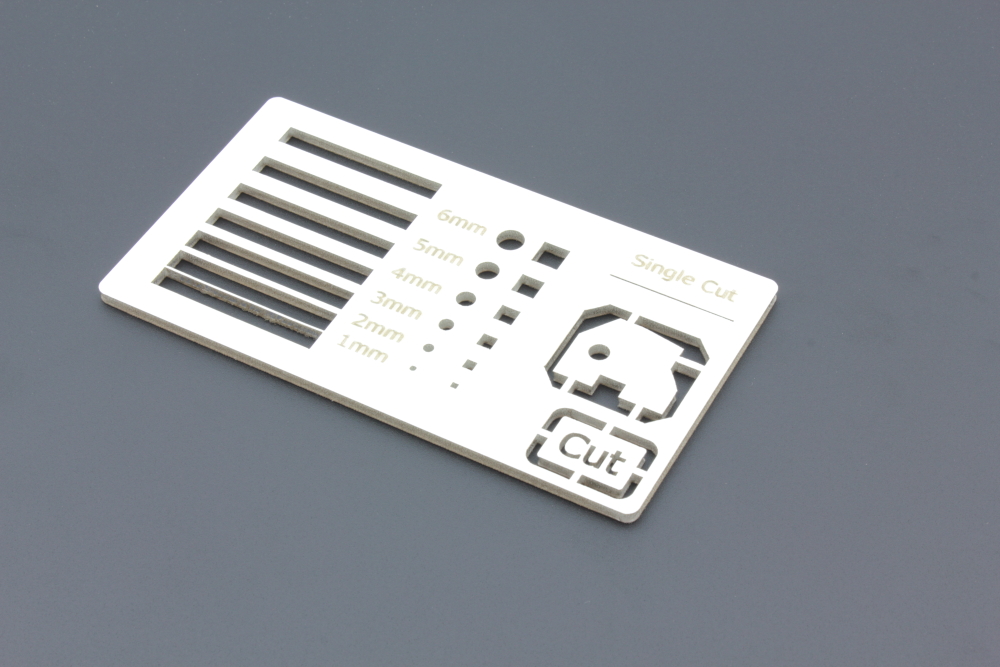

Foam board 3mm - Front

Foam board  3mm - White

Hints from TechStation!

Foam board is fun and easy to work with and can be used in many creative ways.

Please note that the core of the material is made of styrene foam which melt more than the cardboard surfaces when laser cutting. This makes it difficult to cut small features even in the relatively thin 3mm board. Features thinner than 2mm are therefore not recommended.

Worth noting is that the white foam boards are more prone to burn marks on the backside of your parts than the black sheets. The thickness of the material if also worth considering with regards to burn marks, the thicker the material you choose the more burn mark will be present on your part.

Benefits:

+ Nice surface

+ Easy to cut

+ Low weight

+ Strong material compared to its weight

Drawbacks:

- The surface is made of paper

Mechanical properties:

  • Density: 45-55 kg/m3
