Normally used as a packaging material but is well suited for laser cutting, leaving nice clean cuts.

Single wall has one flute layer surrounded by two flat layers.

Dubble wall has two flute layers and three flat layers.

Single face has one flute layer and one flat layer.

Premium cardboard has a nicer surface finish using slightly thicker flat layers.

Available thicknesses and colors

  • 7mm - Natural - Premium - Dubble wall
  • 6.5mm - Natural - Dubble wall
  • 3mm - Natural - Single wall
  • 2.5mm - Natural - Single face

Thickness tolerance

±0.5mm (larger variances might occur)

Cut width

~ 0.15-0.3mm

Sheet Size

  • 7mm - 970mm * 680mm
  • 6.5mm - 1100mm * 700mm
  • 3mm - 1100mm * 700mm
  • 2.5mm - 1200mm * 660mm

How does it look once laser cut?

7mm Dubble wall

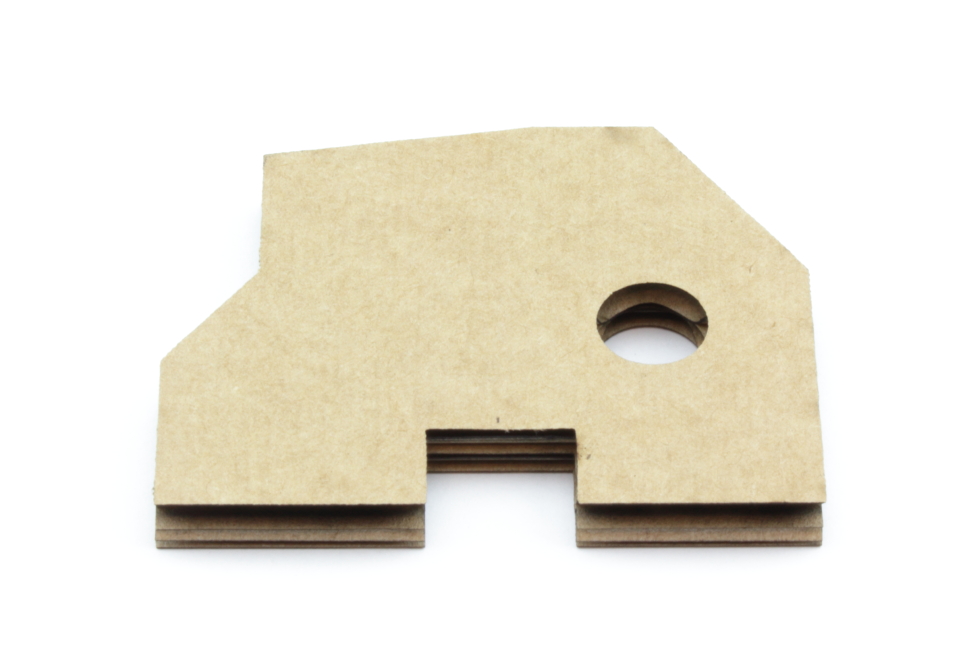

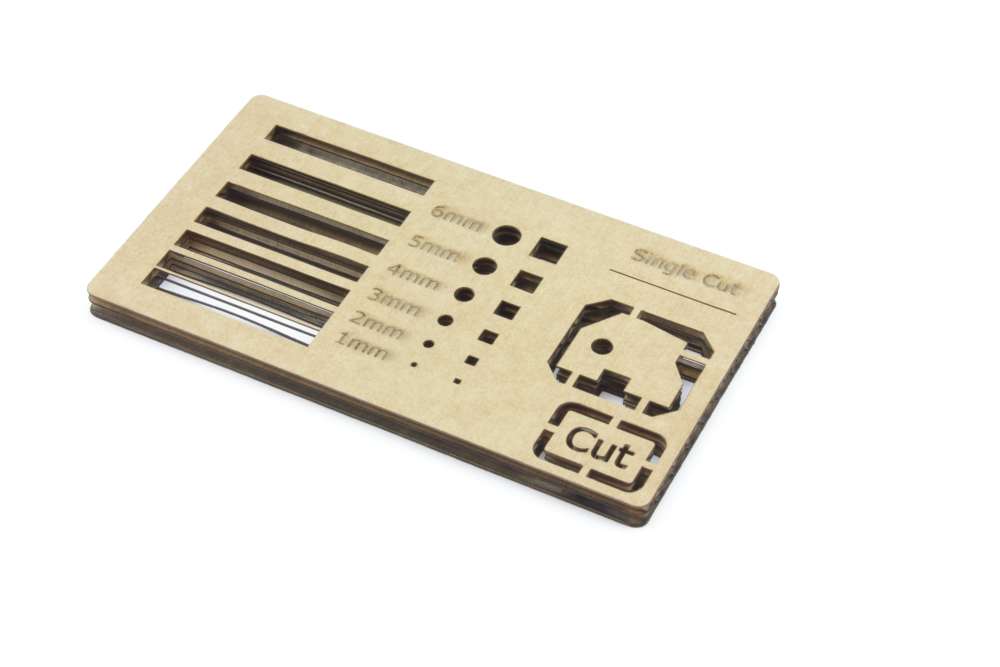

Corrugated cardboard 6,9mm - Cut

Corrugated cardboard 6,9mm - Cut

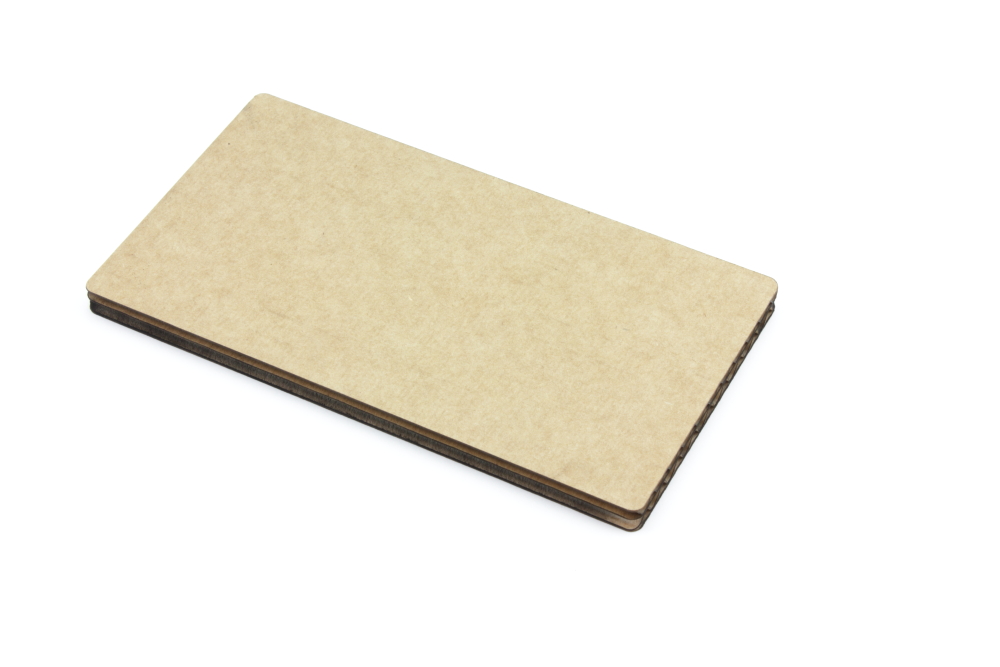

Corrugated cardboard 6,9mm - Front

Below: Flashbacks on the backside of the parts.

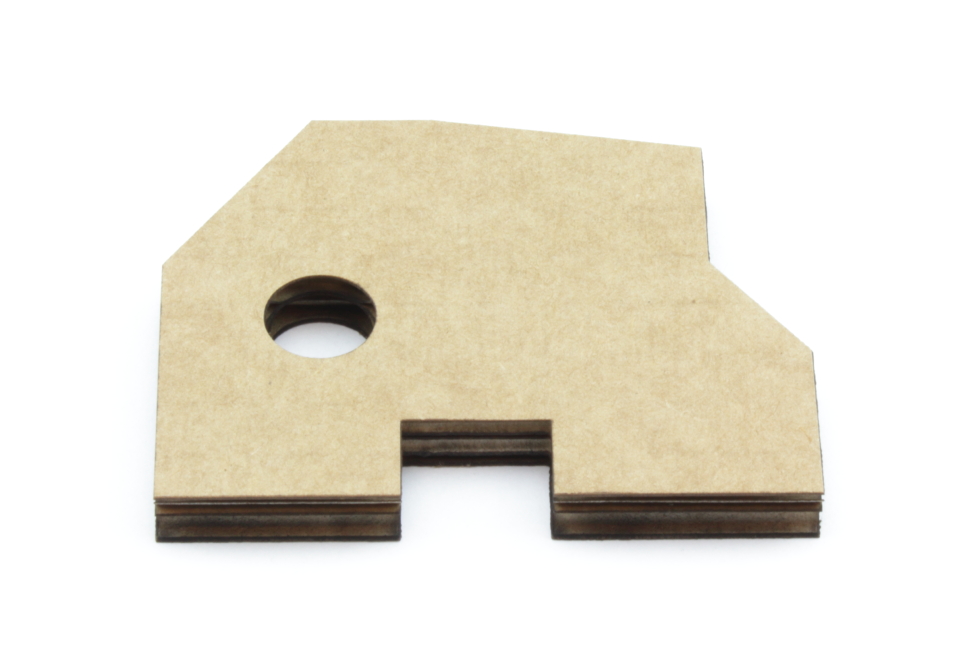

Corrugated cardboard 6,9mm - Back

2.5mm Single face

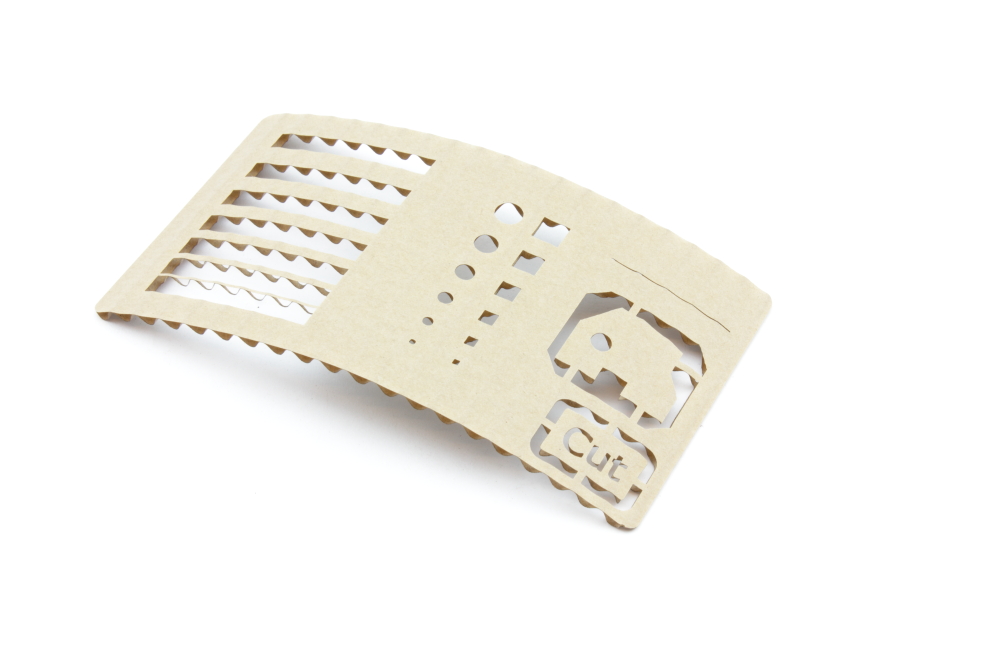

Corrugated cardboard 2,6mm - Cut

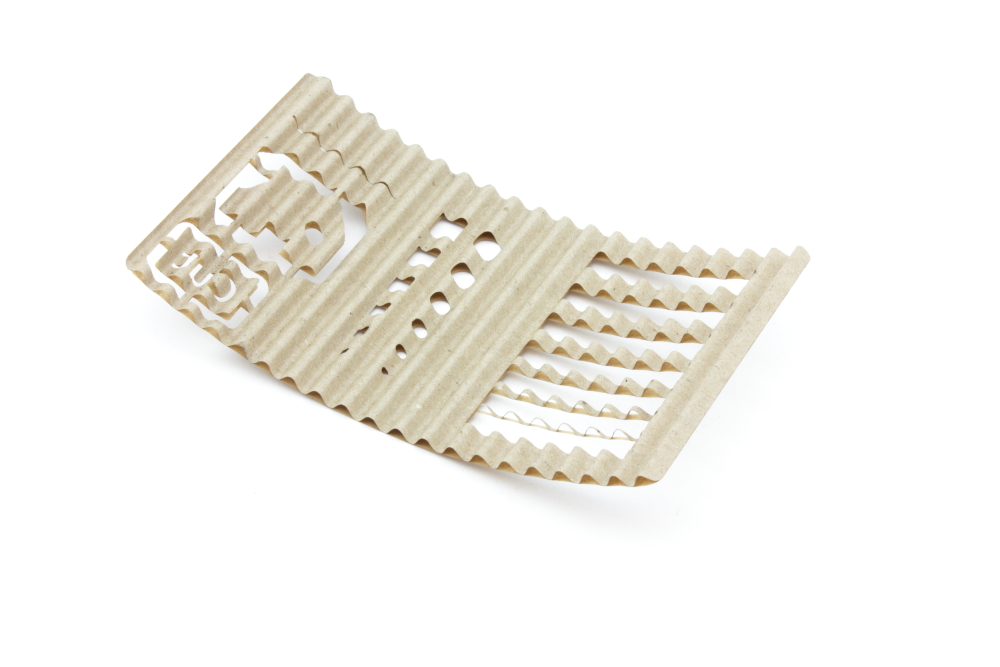

Corrugated cardboard 2,6mm - Cut - Backside

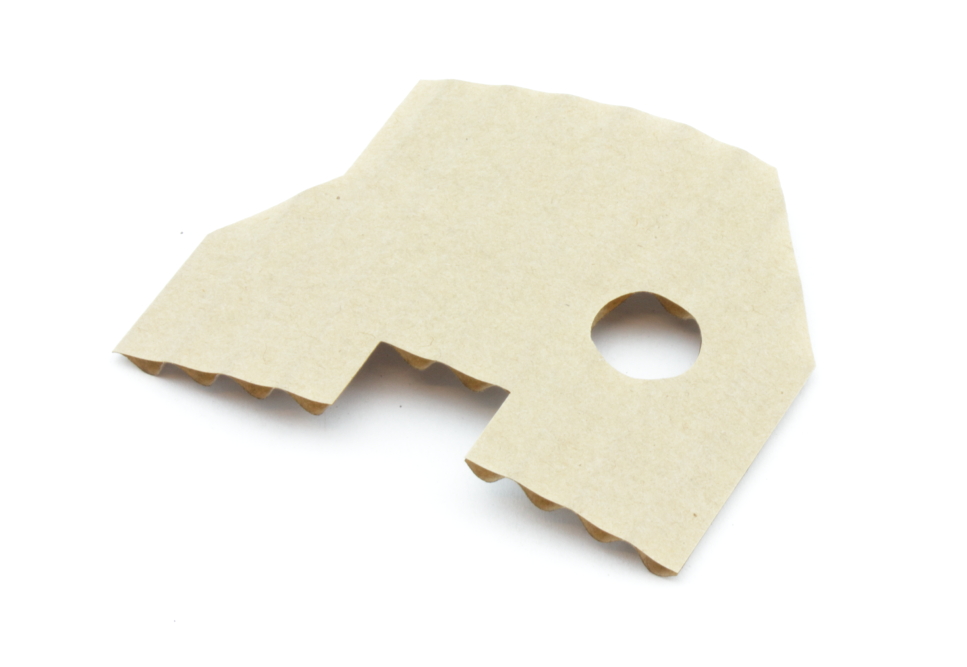

Corrugated cardboard 2,6mm - Front

Below: Flashbacks on the backside of the parts.

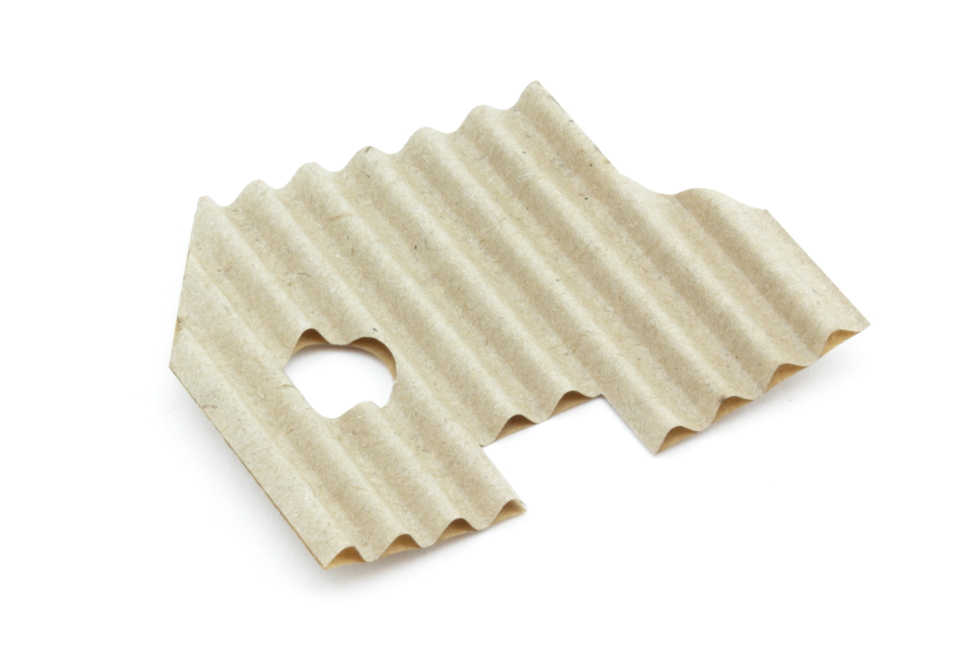

Corrugated cardboard 2,6mm - Back

Hints from TechStation!

Fun material that can be used in many creative ways.

Remember that the internal structure of the material is comprised of long hollow tubes. Don't make features to small or there will be no internal structure holding the outside together. An example of this can be seen on the first image on this page. Take a look at the 1mm bar.

Benefits:

+ Cheap

+ Simple to glue

+ Easy to bend

+ Low weight

+ Strong material compared to its weight

Drawbacks:

- Made of paper

Mechanical properties:

  • Density: 60-90 kg/m3
