Polyoxymethylene (POM), also known as Delrin, Acetal,Polyacetal and Polyformaldehyde, is an engineering thermoplastic used in a wide variety of industrial applications. Its nice mechanical properties and low friction makes it suitable for everything from automation components, gears, bushings, mechanical parts and much more.

When laser cutting POM an ok edge is produced with some signs of burning and a small edge of slag is left on the underside of the part.

Available thicknesses and colors

  • 6mm - Black
  • 5mm - Black
  • 4mm - Black
  • 3mm - Black
  • 2mm - Black
  • 1mm - Black

  • 5mm - White
  • 3mm - White
  • 2mm - White
  • 1mm - White

  • 1.5mm - White Opal

Cut width

~ 0.06-0.25mm

Thickness

Cut width compensation (each side)
1.5mm ~0.06-0.08mm

Sheet Size

All POM sheets we process are 995mm * 660mm

How does it look once laser cut?

POM 2mm Black - Cut

POM 2mm Black - Line Engrave

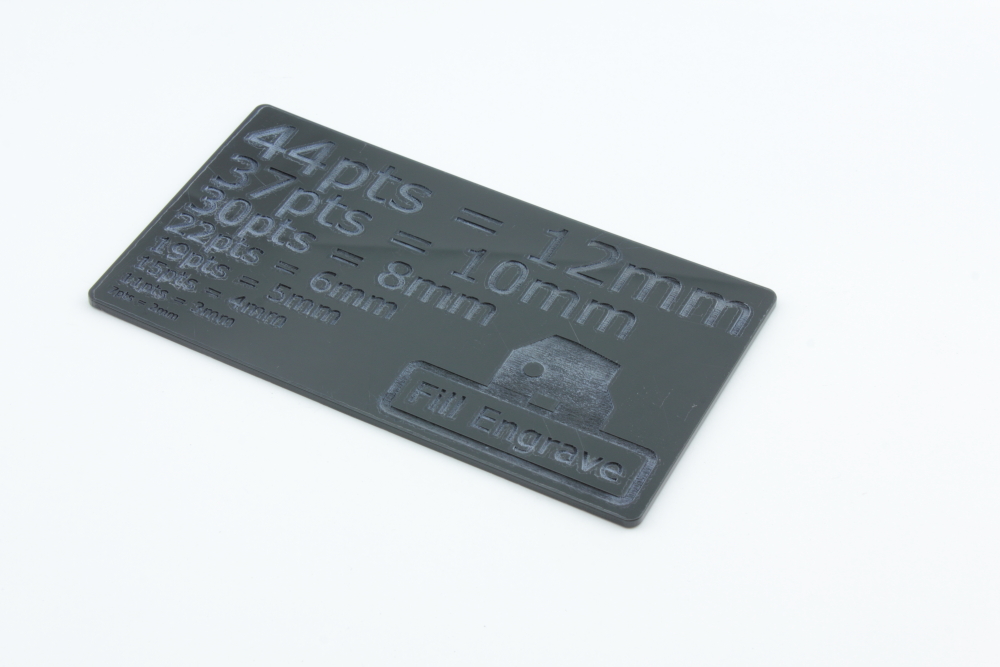

POM 2mm Black - Fill Engrave before cleaning

Above before cleaning, below after cleaning.

POM 2mm Black - Fill Engrave after cleaning

Below: Flashbacks on the backside of the parts.

POM 2mm Black - Flashbacks

Hints from TechStation!

The material for your mechanical contraptions that need a material more durable than MDF and less brittle than PMMA!

Benefits:

+ Good mechanical strength

+ Low friction

+ High heat resistance

Drawbacks:

- Hard to glue

- Not UV-resistant

Mechanical properties:

  • Density: 600-800 kg/m3
